The Range Rings / Ellipses tool creates single or concentric circles or ellipses at a fixed distance. While similar to the buffer tool,range rings can be created at a clicked or specified location, rather than always based on a selected vector feature. The range rings tool also provides options for deriving the radius from an attribute, and creating radial lines based on a bearing angle increment.
Select the Create
Range Ring(s) option from the Digitizer Toolset, or the Digitizer menu or right-click context menu under Create Area / Polygon Features or Create Line Features.
Using the Range Rings tool:
After selecting the Create
Range Ring(s) option, the cursor will appear with a
ring icon. Place the center location of the
range rings by left clicking at the desired location.
If point features are selected when this option is activated, the user can also choose to create the rings centered on the selected point feature(s) rather than manually specifying a center location from the dialog that appears.
To cancel creation of the range ring(s) at any time, press the Escape key or right-click with the mouse.

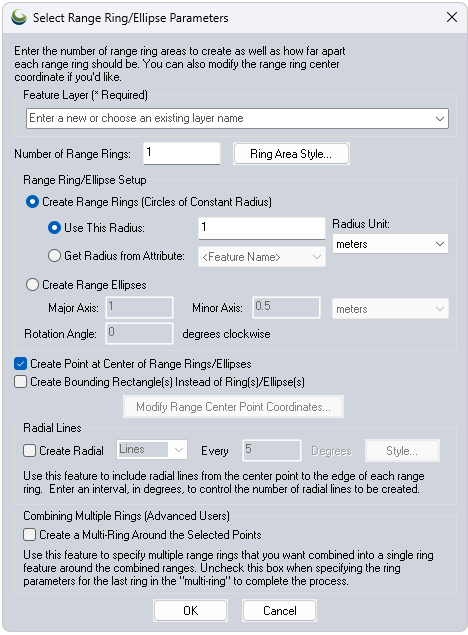

After selecting the center of the range ring(s), the Select Range Ring Parameters dialog (pictured below) appears and allows the user to setup how many range rings are to be created, and how far apart to create them.
Once creating the range ring(s) is completed, the Digitizer Tool will remain in the range ring creation mode. Simply left-click to create additional range rings centered on another location, or right-click to choose a different mode.
Select Range Ring/Ellipse Parameters
Feature Layer
Choose a layer to contain the created range rings. Type in a name to create a new layer, or use the dropdown menu to choose an existing layer.
Number of Range Rings
Choose the number of concentric rings to create.
Range Ring/ Ellipse Setup
Choose to generate circles of constant radius of ellipses.
Create Range Rings (Circles of Constant Radius)
Specify a radius value, or choose to calculate the radius from an attribute value of the selected point feature(s).
To used a fixed value, enter the value and in the Use This Radius box, and specify the Radius Unit.
Note: If choosing to create new range rings at selected point locations and those points have a RING_RAD_M attribute, that attribute value will be interpreted as the ring radius in meters and used rather than what is specified in the dialog described below.
The Get Radius from Attribute drop down will provide a list of attributes from the currently selected point features. Choose a numeric attribute to use for the radius. If the attribute value contains a unit, that unit will be used.
If the attribute does not have a unit, the Radius Unit from the dialog will be used.
Create Range Ellipses
To Create Range Ellipses, specify the Major Axis radius and Minor Axis radius. The major axis will be measured in the north to south direction with a rotation value of 0. Specify an alternative rotation value in degrees to rotate the ellipses clockwise.
Create Point At Center of Range Rings/ Ellipses
Check this option to also create a point feature at the center.
Create Bounding Rectangles Instead of Rings/ Ellipses
The user can choose to create squares or rectangles with the specified radius as half the width, rather than a ring or ellipsis.
Modify Range Center Point Coordinate
Choose this button to update the clicked location.
Radial Lines
The radial lines option will generate line features to subdivide the range area. They are calculated based on a repeating angle measure from the center point. Radial lines may be generated for rings or squares, but are not available for ellipses.
Combining Multiple Rings (Advanced Users)
Create a Multi-Ring Around the Selected Points
When creating rings at one location at a time, checking the multi-ring box will delay the actual range ring creation until additional range rings have been added. Uncheck the box when creating the final ring. Then, all overlapping rings will be dissolved.
When creating rings around multiple pre-selected points, checking the box will dissolve the overlapping rings without needing to rerun the tool.
If a new Style... is not chosen, the default style drawing Range Rings will be used.
Shortcut Keys
- ESC - Cancel Feature Creation
