Prime Meridian Definitions

Updated

The DataSourceEditor GUI dialog allows you to add, change and delete user-defined Prime Meridians, and to view all Prime Meridians. Optionally, you can pass ObjectType.PrimeMeridian into the DataSourceEditor constructor to filter the editor window to only show Prime Meridians.

Create a new Prime Meridian

  1. Create a DataSourceEditor object and display it with the Show method



  2. In the right-hand pane, right-click and select New Object or click the Add button below the pane.  A new blank Prime Meridian Editor dialog will open.  There are two tabs on the Prime Meridian Editor:

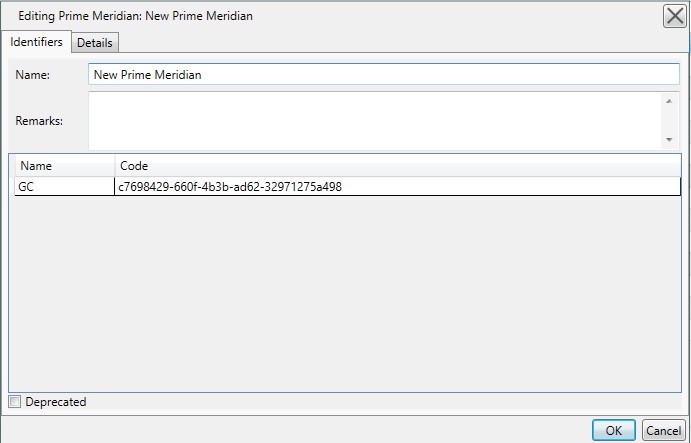

    Identification

    The Identification tab is used to name the object and associate identifying codes with it (if applicable).

    • The Name field is where you need to enter the appropriate name for the definition; the name entered is the name that will be used to select the object in the main list.
    • The Remarks field can be used to add notes on a definition and is optional.
    • The Identifiers list may be used to add identifying codes for an object that may be referenced in other databases.  The GC code is a unique identifier assigned by GeoCalc which cannot be altered.  To enter additional codes, right-click in the space below.
    • Deprecated may be checked to indicate an object is no longer being used, either because there are errors in the definition, or because it has been superseded by another object. If this is checked, you will be provided with a date picker to set the date on which the object was deprecated. This will default to the current date.

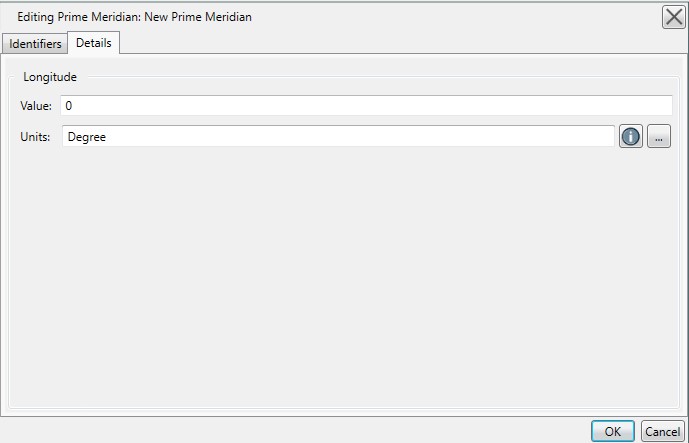

    Details

    The Details tab is used to define the object's parameters.  For Prime Meridians, you must enter the parameters for the angle by which this prime meridian deviates from the Greenwich Meridian.

  3. Click OK to close the Prime Meridian Editor.

  4. To save the definition permanently, click the Save button on the right hand side of the DataSourceEditor dialog.

  5. Click OK to close the DataSourceEditor dialog, your new definition is complete and may be used within GeoCalc.

Change an existing Prime Meridian

  1. Create a DataSourceEditor object and display it with the Show method

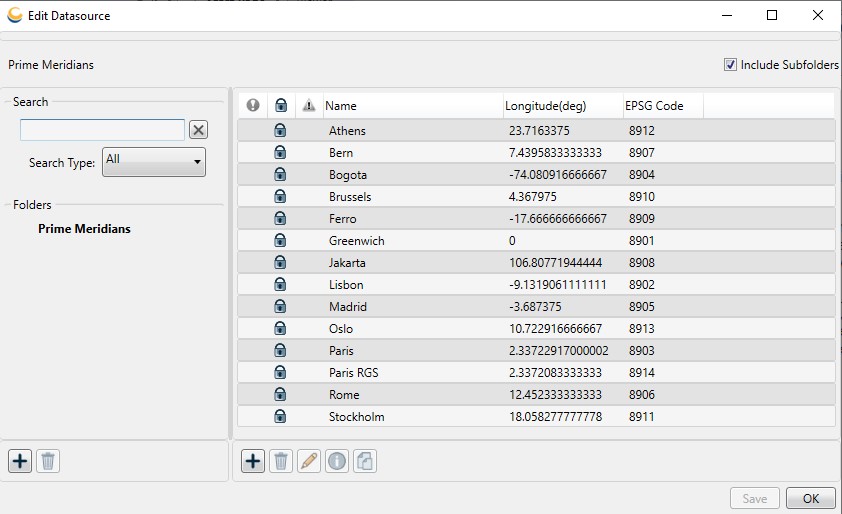

  2. Select the object from the Prime Meridian list.

    You can only edit objects shown in blue.

  3. Double click the object you want to edit to open its definition.

  4. Change any of the values and press the OK button.

  5. To save the definition permanently, click the Save button on the right hand side of the DataSourceEditor dialog.

Delete an existing Prime Meridian

  1. Create a DataSourceEditor object and display it with the Show method

  2. Select the unit from the Prime Meridian list.

    You can only delete objects shown in blue.

  3. Select the object, right-click it and select Delete Object or click the Trash Can button below the object list.

  4. To save the deletion permanently, click the Save button on the right hand side of the DataSourceEditor dialog.
