Printing a Land Survey Summary – Global Mapper

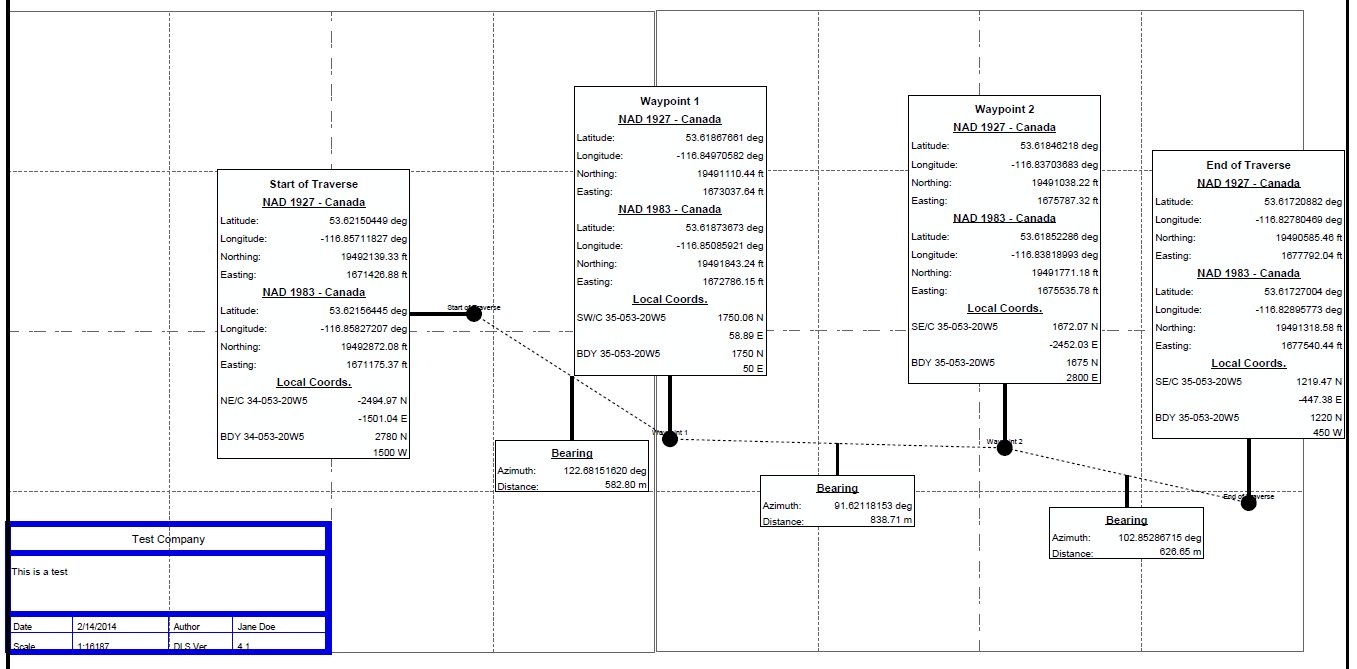

Once the Land Survey Summary job has been successfully processed, you may preview the output, by clicking on the Output Preview tab.

Output Preview Toolbar

Zoom In - Click on the map to perform a fixed zoom in on the clicked location. (Rolling the mouse wheel over the map can also be used to zoom when in any tool. )

Zoom Out - Click on the map to perform a fixed zoom out from the clicked location. (Rolling the mouse wheel over the map can also be used to zoom when in any tool.)

Zoom To Rectangle - Drag a rectangle on the map to zoom to that extent.

Pan - Click and drag to move across the map. Click and drag of the mouse wheel can also be used to pan when in any tool.

Recenter - The cursor will display a recenter icon. Click on the map to recenter at the clicked location.

Reset Map - This will reset the map to the full extent of the data.

Go To Previous View - Use this back button to move back through previous zoom levels and locations

Go To Next View - After using the Go To Previous View button, the Go To Next View button will move forward again through stored map navigation.

Save the Current Map Out to GeoSpatial PDF - Export the Land Survey Summary layout to a pdf file. See below for more information.

From there, click the button to export the report to a standard PDF file, or a GeoSpatial PDF.

For more information about the available Geospatial PDF settings see Geospatial PDF
