The following 3D models are built into Global Mapper and can be used to symbolize points in 3D. Each 3D model has a default height used if no height is specified in the feature attributes. For more information about applying a 3D model to point features, see Working with 3D Models
Related topics
- Create Regular Grid of Features
- Built-in 3D Models
- Built-In Point Types and Symbols
- Create Features in 3D with Snapping
- Create New Point/Test Features from Selected Lidar Points
- Create Point/ Text Feature At Specified Position
- Create Points from Lines/Areas
- Create Points Spaced Along Area and Line Features
- Create Randomly Distributed Points within Selected Area Feature(s)
- Create Strike-and-Dip Features
- Custom Symbol Configuration
- Insert Vertices at Intersections
- Layer Menu
- New Point Features
- Point Styles
- Quick Point Creator
- Quiver Plot
|

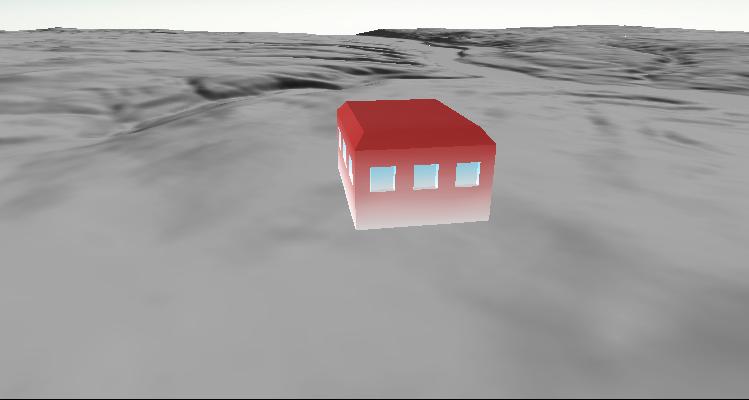

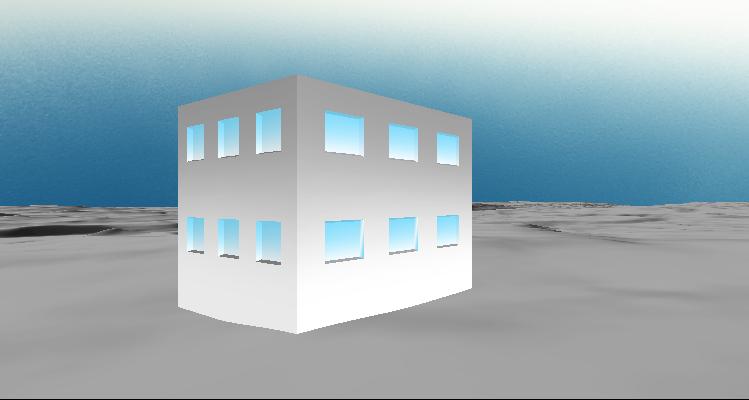

Building Default height: 7 meters |

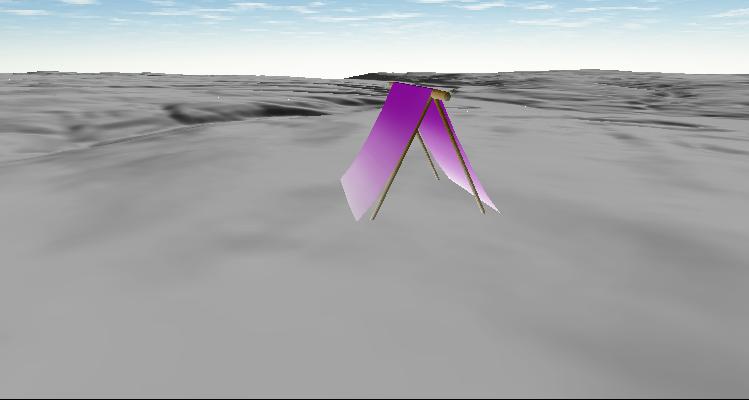

Camp Site Default height: 1.5 meters |
|

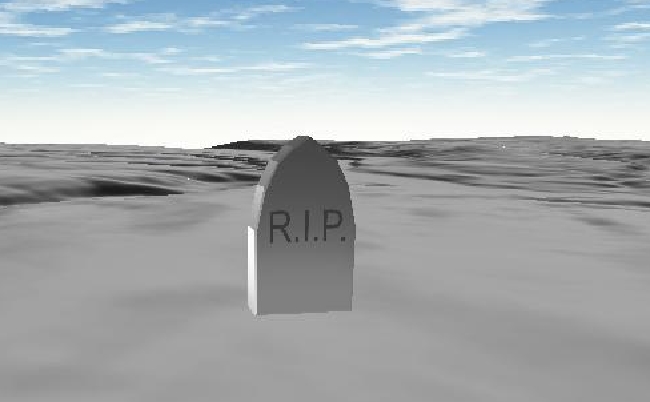

Cemetery Default Height: 0.9144 meters |

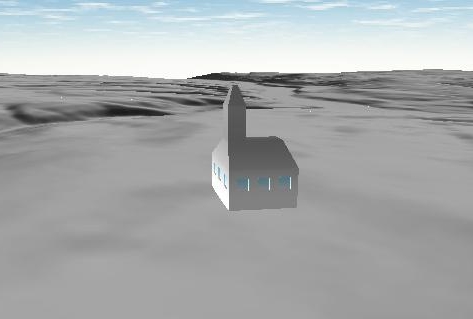

Church Default Height: 11 meters |
|

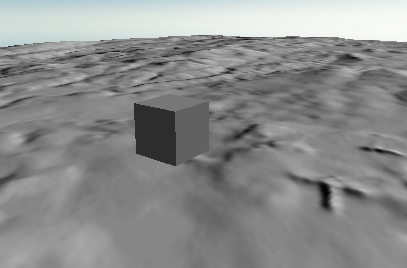

Cube Default Height: 50 meters |

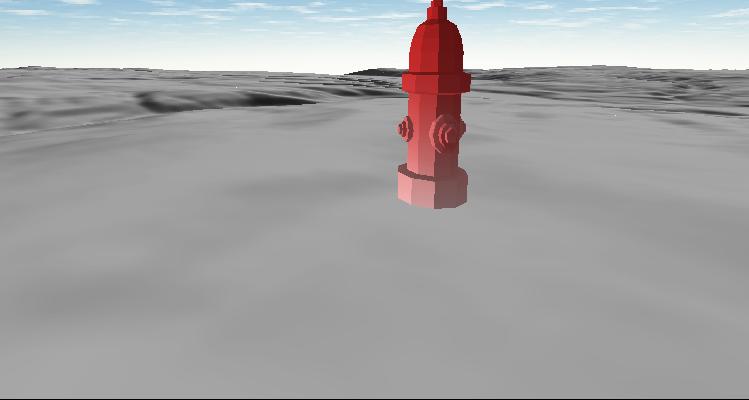

Fire Hydrant Default Height: 3 feet |
|

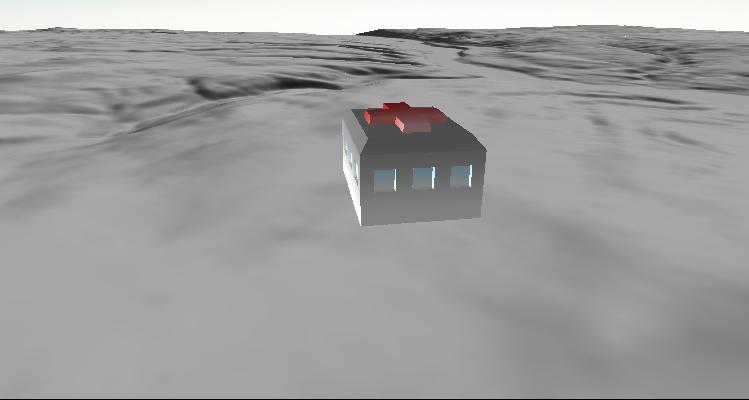

Hospital Default Height: 5 meters |

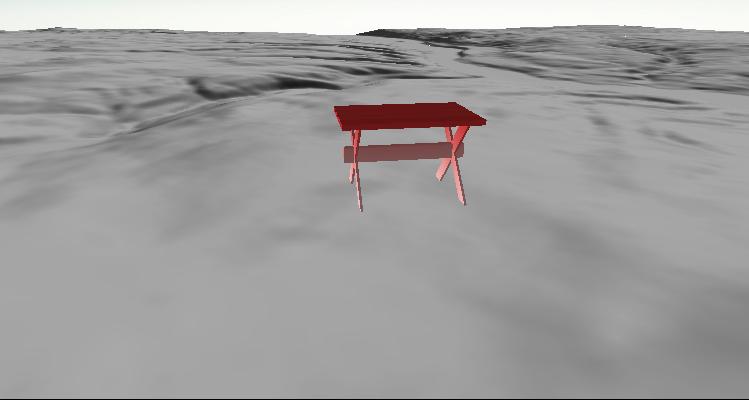

Picnic Area Default Height: 1 meter |
|

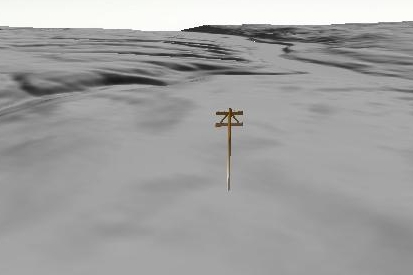

Power Pole Default Height: 12 meters |

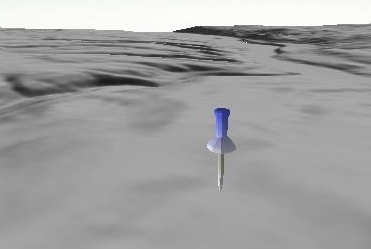

Push Pin Default Height: 50 meters |
|
School Default Height: 5 meters |
Tree Default Height: 35 meters |
|

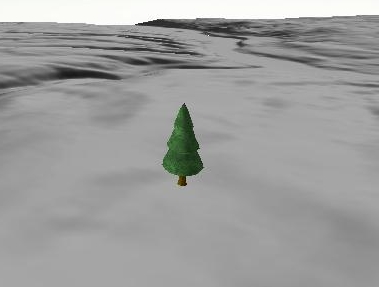

Tree (Pine) Default Height: 35 meters |

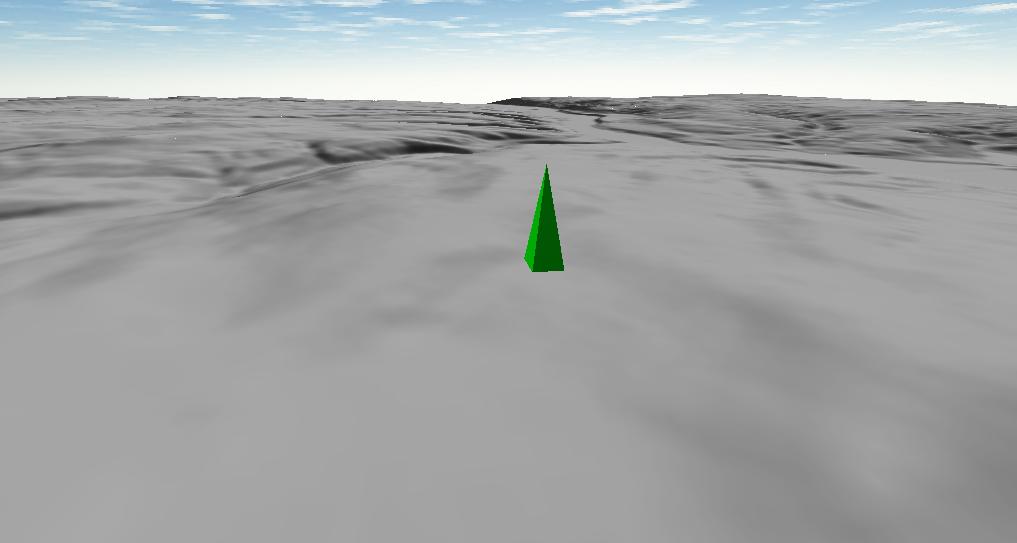

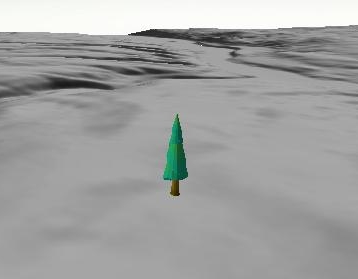

Tree (Simple Pine) Default Height: 30 meters |
|

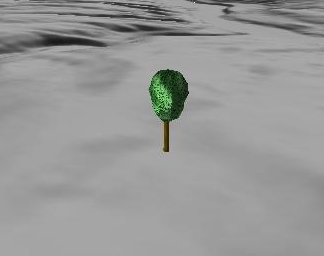

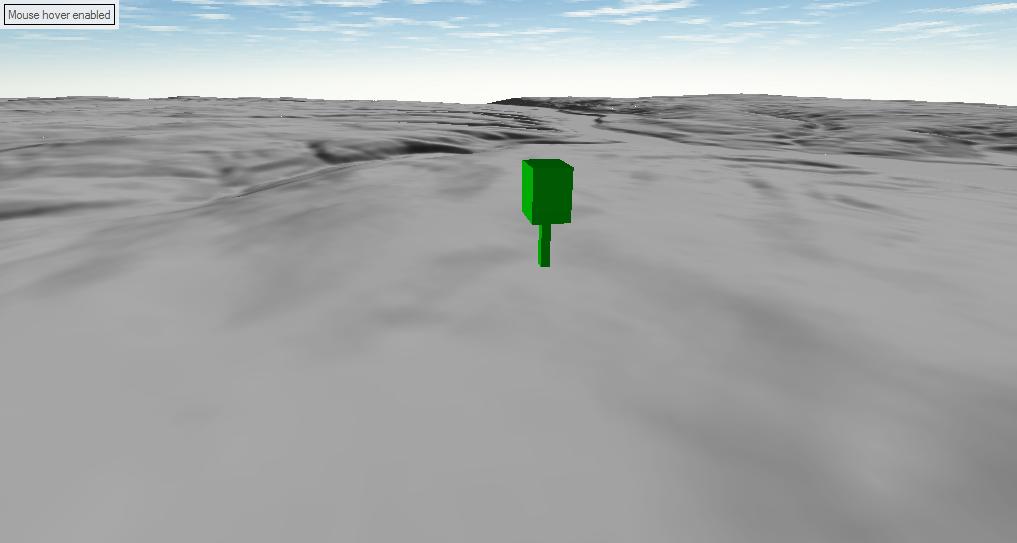

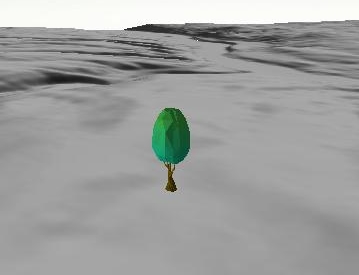

Tree (Simple) Default Height: 30 meters |
Tree (Stylized Pine) Default Height: 40 meters |
|
Tree (Stylized) Default Height: 40 meters |
Tower Default Height: 80 meters |
|
Post Office Default Height: 5 meters |

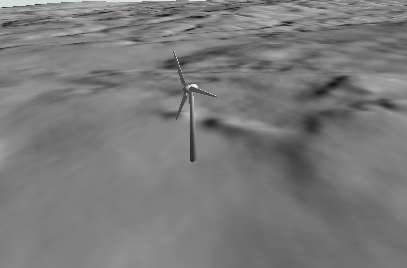

Wind Turbine Default Height: 328 feet |
|

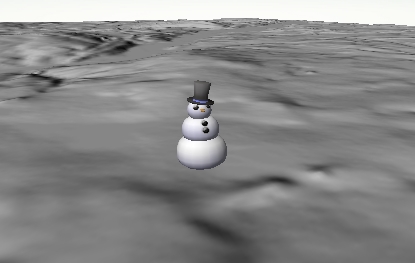

Snowy Default Height: 1.5 meters |

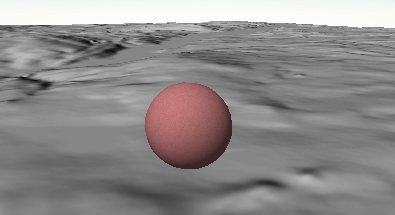

Sphere Red Default Height: 50 meters |
|

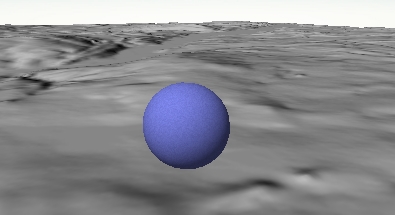

Sphere Blue Default Height: 50 meters |

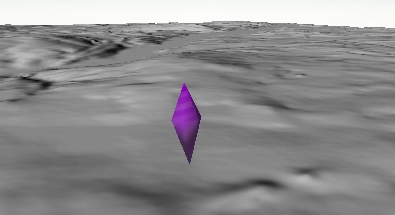

Marker Default Height: 50 meters |
|

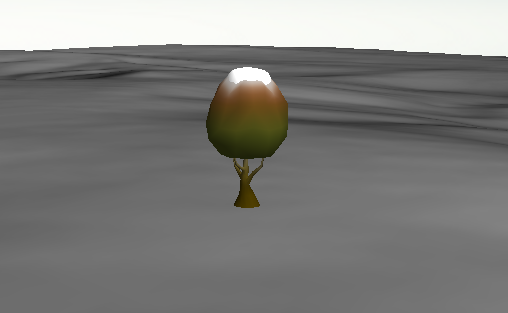

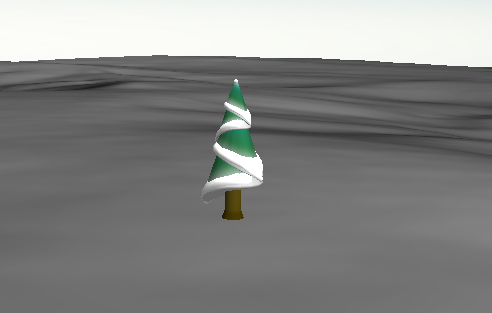

Snowy Tree Default Height: 35 meters |

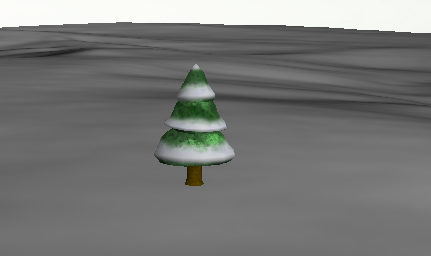

Snowy Tree (Pine) Default Height: 35 meters |
|
Snowy Tree (Stylized Pine) Default Height: 40 meters |

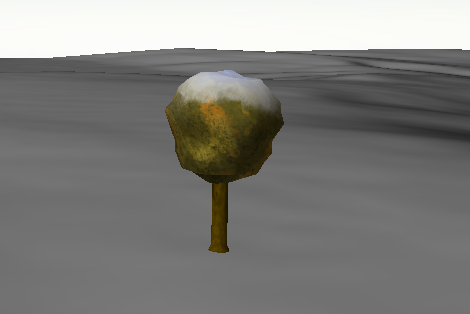

Snowy Tree (Stylized) Default Height: 40 meters |
|

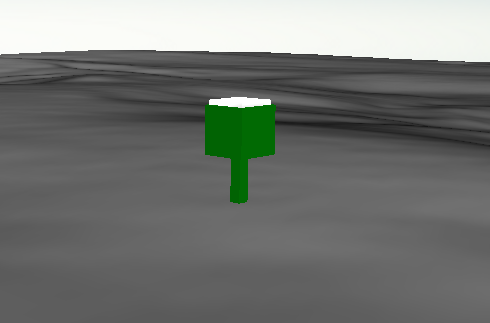

Snowy Tree (Simple) Default Height: 30 meters |

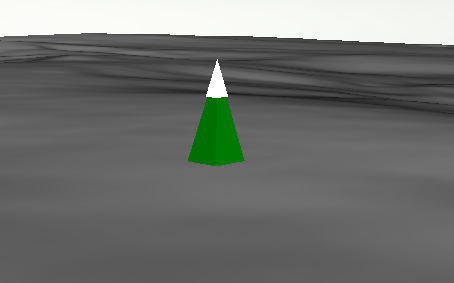

Snowy Tree (Simple Pine) Default Height: 30 meters |
|

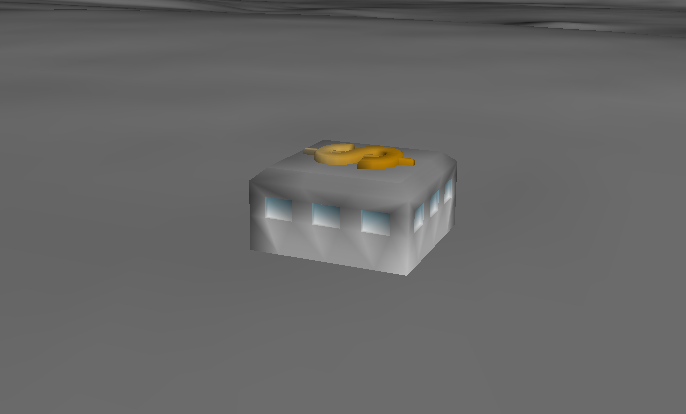

Bank Default Height: 5 meters |
