Add Address Information

With a road data set loaded, select points to add the address information from the roads layer to the points.

If one or more point features are selected, the Add Address Information from Roads to Selected Point(s) option will appear in the Digitizer menu or context menu under Attribute/ Style Functions.

Selecting this option will cause each point to be examined to find the nearest line feature, and, if it contains addressing information, for the address of the nearest point on the line to the point feature to be stored as address attributes with the point feature

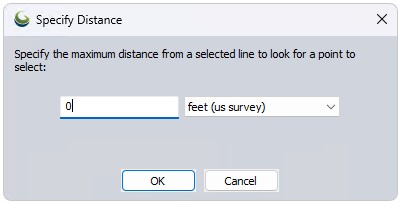

Once selected, you will be asked to define the maximum distance the point feature can be from the line feature to copy the address from it in the Specify Distance dialog (below).

A pop-up message will confirm that the Address attribute(s) have been added to the selected points. Clicking the modified point with the Feature Info Tool will confirm that the Road information has been successfully added to the point.

The following attribute names for line features are recognized as containing address information:

• FR_ADDR_R, R_FROM_ADR - starting address number on the right side of the road
• FR_ADDR_L, L_FROM_ADR - starting address number on the left side of the road
• TO_ADDR_R, R_TO_ADR - ending address number on the right side of the road
• TO_ADDR_L, L_TO_ADR - ending address number on the left side of the road
• PLACE_R, R_CITY - city or town on the right side of the road
• PLACE_L, L_CITY - city or town on the left side of the road
• STATE_R, R_STATE - state or province on the right side of the road
• STATE_L, L_STATE - state or province on the left side of the road
• ZIP_R, R_ZIP, R_PCODE - postal code on right side of road
• ZIP_L, L_ZIP, L_PCODE - postal code on left side of road
• COUNTRY_R, R_COUNTRY - country on right side of the road
• COUNTRY_L, L_COUNTRY - country on left side of the road
• PARITY_R, R_PARITY - numeric parity value on right side of road. A value of 1 means odd parity (addresses are all odd), a value of 2 means even parity (address are all even), and a value of 3 means there is not parity (addresses can be even and odd). For any other value the parity will be automatically determined.
• PARITY_L, L_PARITY - numeric parity value on left side of road. A value of 1 means odd parity (addresses are all odd), a value of 2 means even parity (address are all even), and a value of 3 means there is not parity (addresses can be even and odd). For any other value the parity will be automatically determined.


Only the start and end address number are absolutely required for the side of a road to have addressing, in addition to the road having a name. See also Address Attributes.
