Lidar Feature Extraction

Global Mapper can automate the process of locating features on the ground by using classified point cloud data with the automated feature extraction tools available with Global Mapper Pro. The Extract Vector Features tool can be used on classified points in an entire point cloud or a user-defined subsection. This feature extraction tool lets the user derive vector features such as building footprints, building roof structures, power lines, and other structures from classified point clouds. The default parameter values can be changed by the user for improved results.

These tools work by segmenting the point cloud, and the resulting vector features are closely related to the segments that were used to create them.

The Feature Extraction tool can be found within the Automatic Point Cloud Analysis tool

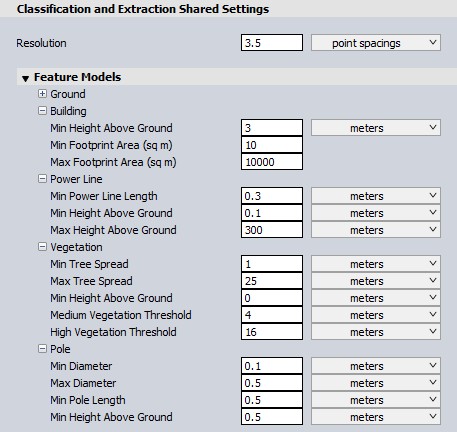

Shared Settings

Each feature type has shared settings in the Feature Models section at the top of the Automatic Point Cloud Analysis tool. These values are used during both Max Likelihood classification and feature extraction. To see definitions of these values, check each feature's classification page. Particularly important values are also reflected in the feature extraction section for convenience.

Note that Resolution is a Shared Setting that impacts feature extraction.

Building Footprint Extraction Settings

*Be sure to check the additional Shared Settings from the top of the Automatic Point Cloud Analysis panel.

Check Buildingin the Extraction section of the Automatic Point Cloud Analysis panel to create 3D building vector or mesh features based on points in the Structure/ Building Point group.

Create Approximate Ground Coverage Polygons (building footprints) - Select this option to create polygons at the base of the buildings representing the footprint.

Regularize Footprints - Check this option to regularize building footprints so that corners become 90 degrees and opposite walls are parallel. This option can only be enabled when simplify is disabled. Footprints will be regularized based on the horizontal threshold. The horizontal threshold defines the maximum distance a point can be moved to make line segments parallel or perpendicular.

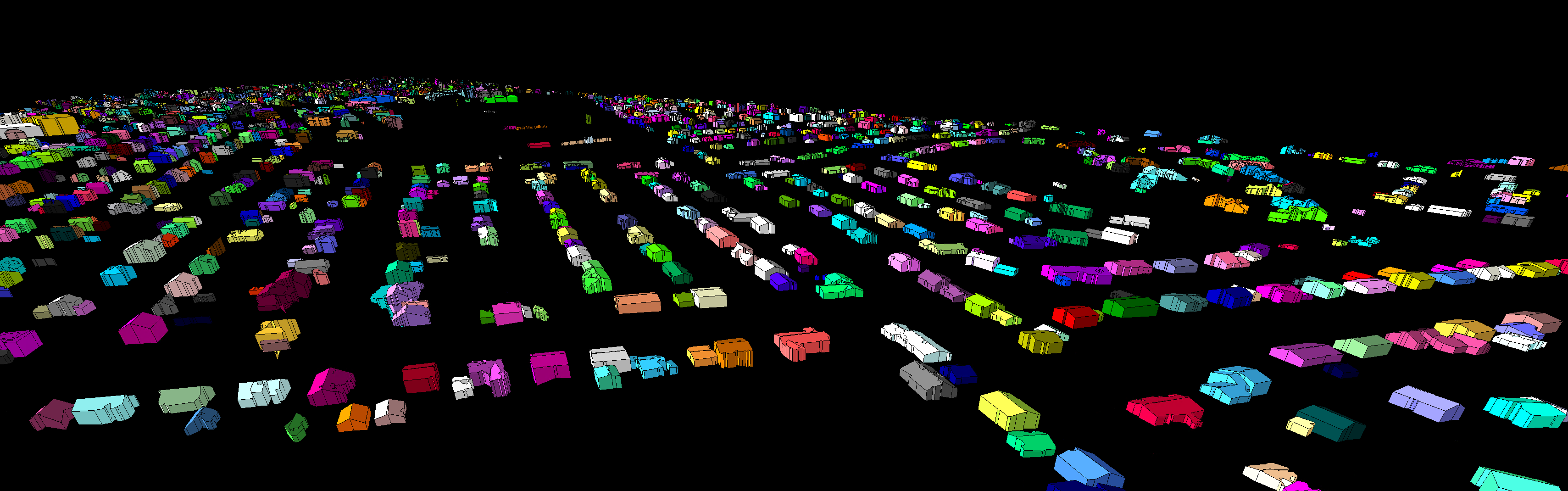

Buildings extracted using the regularize setting with roof planes and sidewalls enabled

Simplify Footprints - Check this option to simplify buildings. Extra vertices will be removed, given that they do not move the original boundary further than the specified horizontal threshold.

Minimum Footprint Area - Specify the minimum size of a building footprint in square meters. Generated footprints smaller than the entered value will be discarded.

Pin Footprints to Height - Use this option to set the elevation for all generated building footprints features to a single value.

Roof Planes - Select this option to identify and create roof features for extracted buildings.

Side Walls - Select this to generate side wall features for the extracted buildings.

Sharpen edges by adding points at planar intersections - This option will generate point features along intersections between planes. The points will be placed between pairs of nearby points that are contained in different planes.

Generate Mesh - If selected, the building roofs will each be turned into a single 3D mesh feature.

Color by Intensity - Use this option to color the mesh vertices by the intensity value at that location, derived from the point cloud.

Reconstruct Surface _ Reconstruction Rate - check this option and enter a value to use only a certain percentage of the building points to generate the mesh. This will create less complicated mesh features. The density of vertices will be the specified percentage of the original mesh vertex density.

RANSAC Plane Detection - This process checks different combinations of points against plane models being extracted in order to determine the best fit.

Max Distance to Plane - Set the maximum distance in meters from an identified plane at which a point can still be considered part of the plane.

Min Points in Plane - Use this field to set the minimum number of points needed in an area to identify a plane and create an extracted building feature.

Max Iterations - Use this field to limit how many plane models will be tested in the analysis.

Normal Weight - This parameter determines how important the point normal vectors are in matching the points against a plane model. The point normal is the direction perpendicular to the surface the point represents.



Powerline Extraction Settings

*Be sure to check the additional Shared Settings from the top of the Automatic Point Cloud Analysis panel.

This option creates 3D line features from points classified as 'Wire - Conductor' lidar class 14.

Max Distance to Best Fit Line – Define the maximum allowable distance in meters away from the calculated best fit line for the classified powerline points.

Maximum Allowed Angle Delta – Maximum angle between points to define a co-linear powerline feature. It's the angle difference between line segments in neighboring grid cells.

Minimum Power Line Length to Keep – Defines the shortest allowable powerline segment.



Tree Extraction Settings

*Be sure to check the additional Shared Settings from the top of the Automatic Point Cloud Analysis panel.

This option extracts trees from point clouds containing Vegetation points. Extracted trees are represented as Vector point features, created at each individual treetop.  These extracted tree points will contain measurement attributes determined by measuring each segment. These include crown measurements such as 3D Surface Area, Volume, Spread, and Vertical Extent, the last of which is an approximate measure of crown height. Additional attributes show the Elevation as measured at the top of the tree, along with the Height above ground of the tallest tree point in the canopy.

Create Approximate Ground Coverage Polygons - extracts 2D tree features outlining the tree canopy and shape. These will contain the same attributes as the extracted tree points, plus an attribute stating whether they are low, medium, or high vegetation, based on the height thresholds in the Shared Settings.

Simplify Footprints - Check this option to simplify buildings. Extra vertices will be removed given that they do not move the original boundary further than the specified horizontal threshold.

Generate Mesh - Creates 3D mesh features of the extracted tree canopies.

Reclassify Individual Trees by Height - Extracted trees can be assigned one of 3 lidar classifications: Low, Medium, or High Vegetation. Use the Medium and High options to set the minimum thresholds. Trees taller than these set values will be assigned the corresponding classification. All trees shorter than the Medium threshold will be assigned "Low Vegetation".



Pole Extraction Settings

*Be sure to check the additional Shared Settings from the top of the Automatic Point Cloud Analysis panel.

This option extracts poles as point features or mesh cylinders from points classified as 'Transmission Tower' lidar class 15.

Min Height Above Ground - only points that are a minimum height above the identified ground surface are passed along for non-ground classification such as poles.

Minimum Number of Points – Specify the minimum count of points that must be contained in a cluster of points to create an extracted pole point.

Min and Max Diameter - Cylindrical features with a diameter between these two settings will be classified as poles. Poles that are larger or smaller will be ignored. This is useful for omitting trees. Diameter is assumed to be constant over the pole and isn't measured at a certain height above ground.

Minimum Pole Length- Specify the minimum height of the desired pole objects. This will factor out point clusters that do not contain a tall enough pole object.

Mark Top of Pole – By default, point features are placed at the bottom of the pole. Check this option to create a point feature at the top of the pole instead.

Create Cylinder Mesh Features - Creates cylinder mesh features from the classified pole points.

Each feature will also have associated attributes:

ID - Unique pole identifier

SEGMENT_ID - Source segment

ELEV_M - Elevation of feature point in meters

HEIGHT_M - Height above ground in meters

LENGTH_M - Cylinder length (3D distance for tilted poles)

DIAMETER_M - Cylinder diameter in meters



Tree Trunk Extraction Settings

Remember that Resolution (under Shared Settings) also affects extraction.

Each individual tree trunk, as an identified segment of points classified as Tree Trunk (lidar class 74), can be extracted as either of the following:

• Representational 3D point feature with attribute data - this is the default extraction. The 3D point is placed at the bottom of the trunk segment.

• 3D mesh cylinder - this additional extraction can be enabled by checking the box.

The following settings control which segments of points will be included in the extraction results:

Min Height Above Ground - Only segments that are fully above the entered minimum height above the identified ground points will be extracted.

Minimum Number of Points – Specify the minimum number of points that must be contained in a segment for it to be extracted as a mesh cylinder or representational point feature.

Min and Max DBH - Classified tree trunks segments with a diameter between these two settings will be extracted. Trees larger or smaller will be ignored.

Create Cylinder Mesh Features - Creates cylinder mesh features from the classified tree trunk points.

Each extracted trunk point feature will have the following associated attributes:

ID - Unique tree identifier

SEGMENT_ID - Source segment ID

ELEV_M - Elevation of feature point (the point is placed at base of trunk segment)

HEIGHT_M - Height above classified ground in meters

LENGTH_M - Length of the segment of tree trunk points (3D distance for tilted trunks)

DIAMETER_M - Widest part of the trunk diameter in meters

DBH_M - Estimated trunk diameter at breast height in meters.

DBH_HT_M - Height above ground at which the DBH_M estimate is based. Defaults to 1.3 meters above ground, if sufficient points are present. I

DBH_METHOD: The default method is to measure DBH at 1.3 meters above ground, but two additional methods may be used if there is insufficient point coverage

• breast_height: Enough points were found at 1.3 meters above ground, so the DBH is a true DBH measurement.

• off_height: there - There was insufficient point coverage at 1.3 meters above ground, so the diameter was measured at DBH_HT_M .

• cylinder_fit - Point coverage was too sparse, so the RANSAC cylinder diameter estimate is used (this is the same method as the automatic pole extraction).



Restore Defaults

Restores the default settings for the Feature Extraction tool.
