Load RMaps SQLite Files
Global Mapper v18.1 and later support reading of RMaps SQLite database files. Global Mapper will import RMaps data sets with the following extensions:
- *.rmap
- *.sqlite
- *.sqlitedb
Export RMaps SQLite
The Export RMaps SQLite Database commands allows the user to export any loaded vector data sets to an RMaps SQLite Database format file.
To export an RMaps database, go to File > Export Web Format... and select RMaps SQLite Database as the export format. Individual layers can also be exported from the Control Center by right-click on the layer and going to Layer > EXPORT.

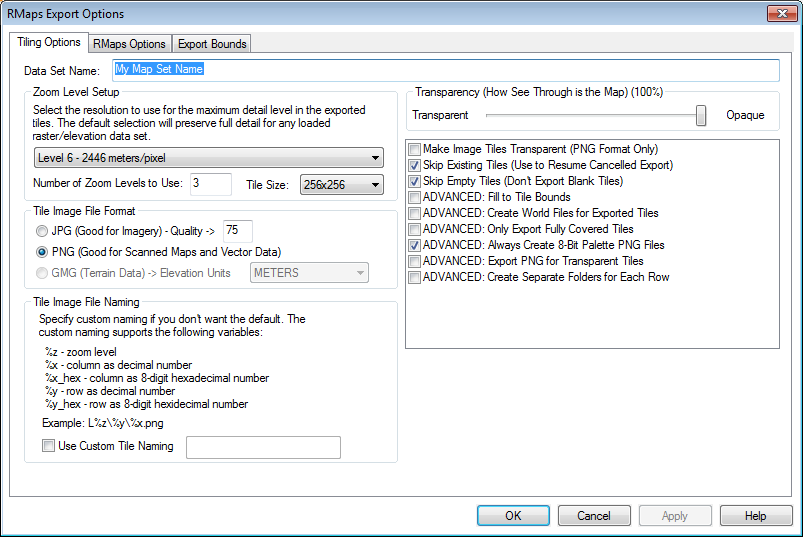

When selected,
the command displays the RMaps SQLite Database Export Options dialog which
consists of an Tiling Options, RMaps Options, and the Export Bounds
panel that allows the user to set up the portion of the loaded data they
wish to export.
The export options allow the user to split creation of an RMaps tile set into two parts:
1. Export the data in the viewer to a TMS tile set
2. Create an RMaps tile set from the TMS tile set.
Export Web Format Tiles (OSM/TMS/Mapbox/RMaps)
RMaps Options
In the RMaps Options
tab, RMaps can be created from the generated tiles by selecting Create
from existing TMS tiles directory and selecting the directory location
for the generated TMS tiles.
