- globalmapper.LidarExtractFeatures([GM_LayerHandle_t32] aLayerList, GM_LidarExtractSetup_t aExtractOpts, uint32 aReserved=0) GM_Error_t32, GM_LidarExtractOutput_t
-
Extracts vector features from the Lidar data in one or more Lidar point cloud layers.
- Parameters:
-
aLayerList ([GM_LayerHandle_t32]) – List of layers to extract from or None for all Lidar layers.
aExtractOpts (GM_LidarExtractSetup_t) – Extraction options. You must provide settings with a non-zero value for mTypes.
aReserved (uint32) – Reserved for future use; defaults to 0
- Returns:
-
Error Code
- Return type:
-
GM_Error_t32
- Returns:
-
Generated layers with extracted features. Be sure to use CloseLayer on them when finished with them.
- Return type:

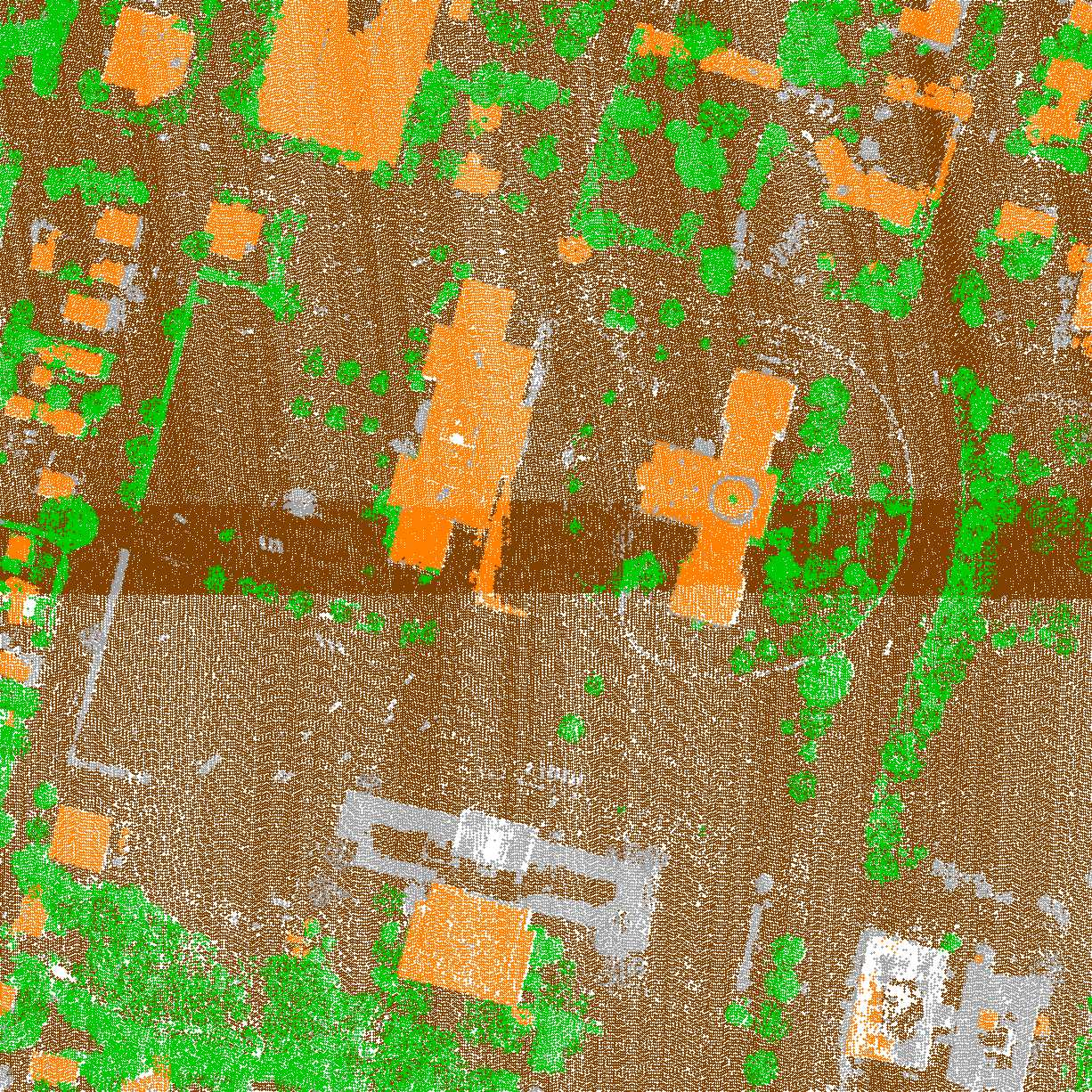

BEFORE |

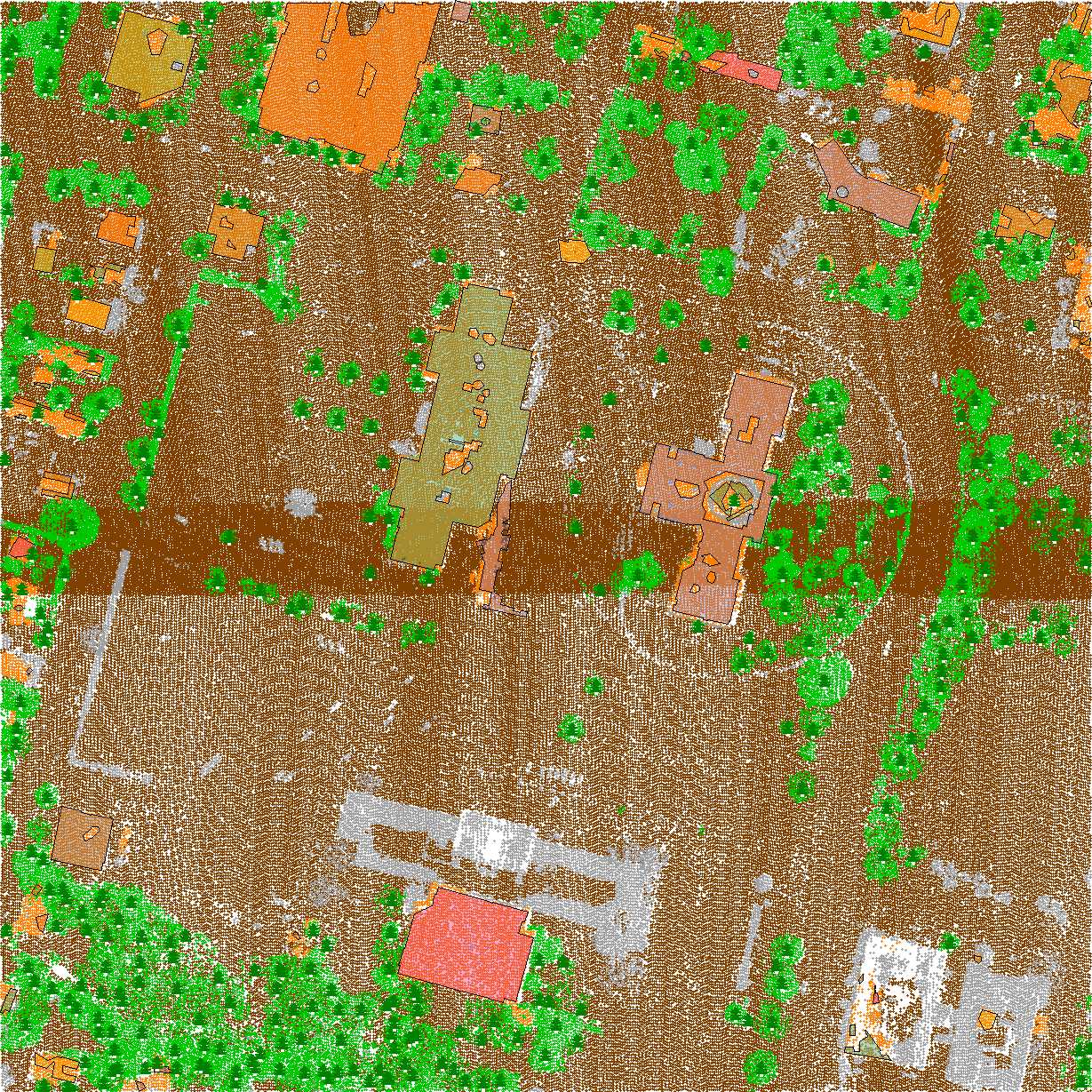

AFTER |
|---|---|
|
|
|
For more context refer to the lidar sample scripts.
