LidarThin

Marius Lazar
Updated
globalmapper.LidarThin(GM_LayerHandle_t32 aLayer, GM_LidarSpatialThinSetup_t aSetup, uint32 aReserved=0) → GM_Error_t32[source]

Spatially thins a Lidar point cloud layer.

Parameters:

  • aLayer (GM_LayerHandle_t32) – Loaded Lidar layer to spatially thin.

  • aSetup (GM_LidarSpatialThinSetup_t) – Spatial thinning setup.

  • aReserved (uint32) – Reserved for future use; defaults to 0

Returns:

Error Code

Return type:

GM_Error_t32

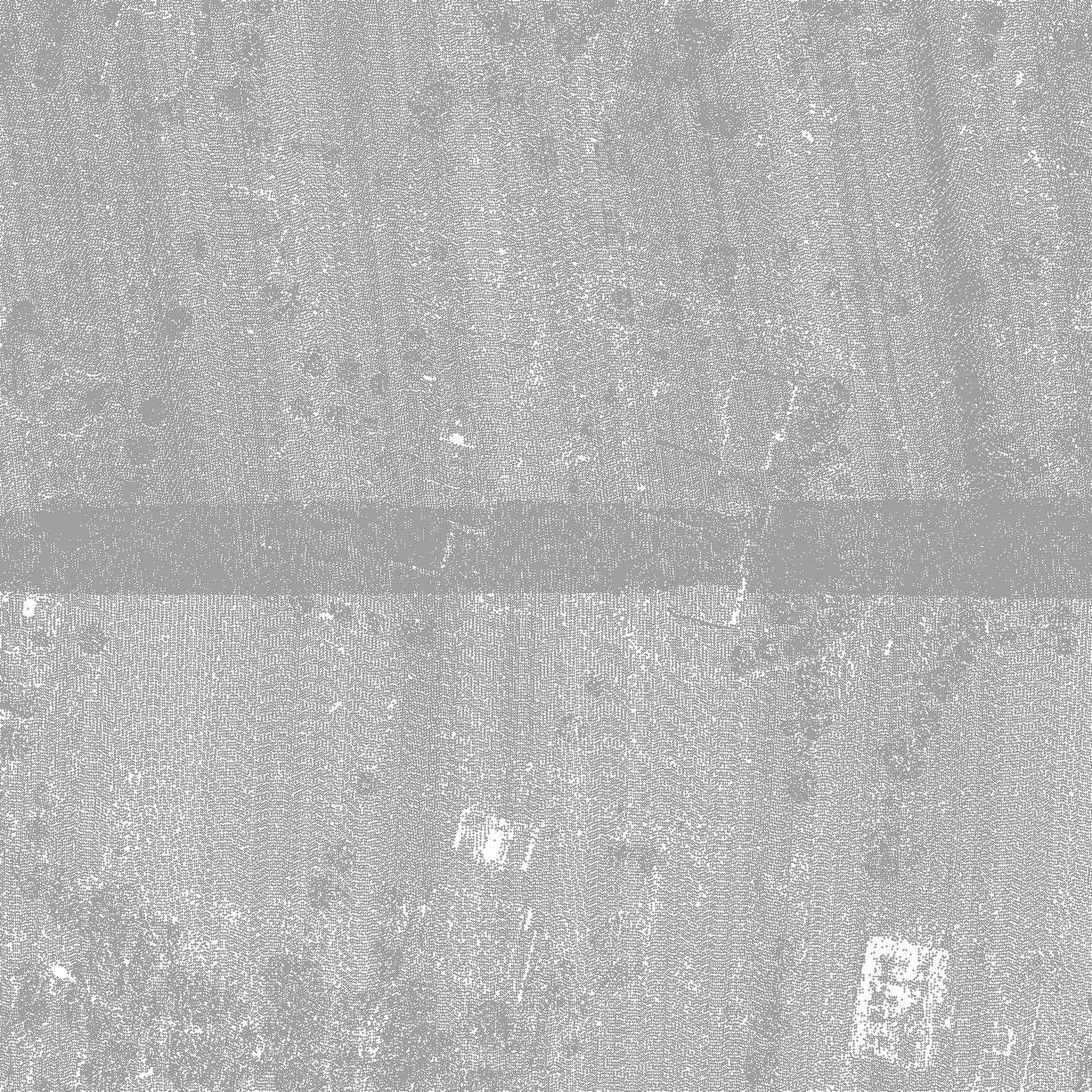

BEFORE

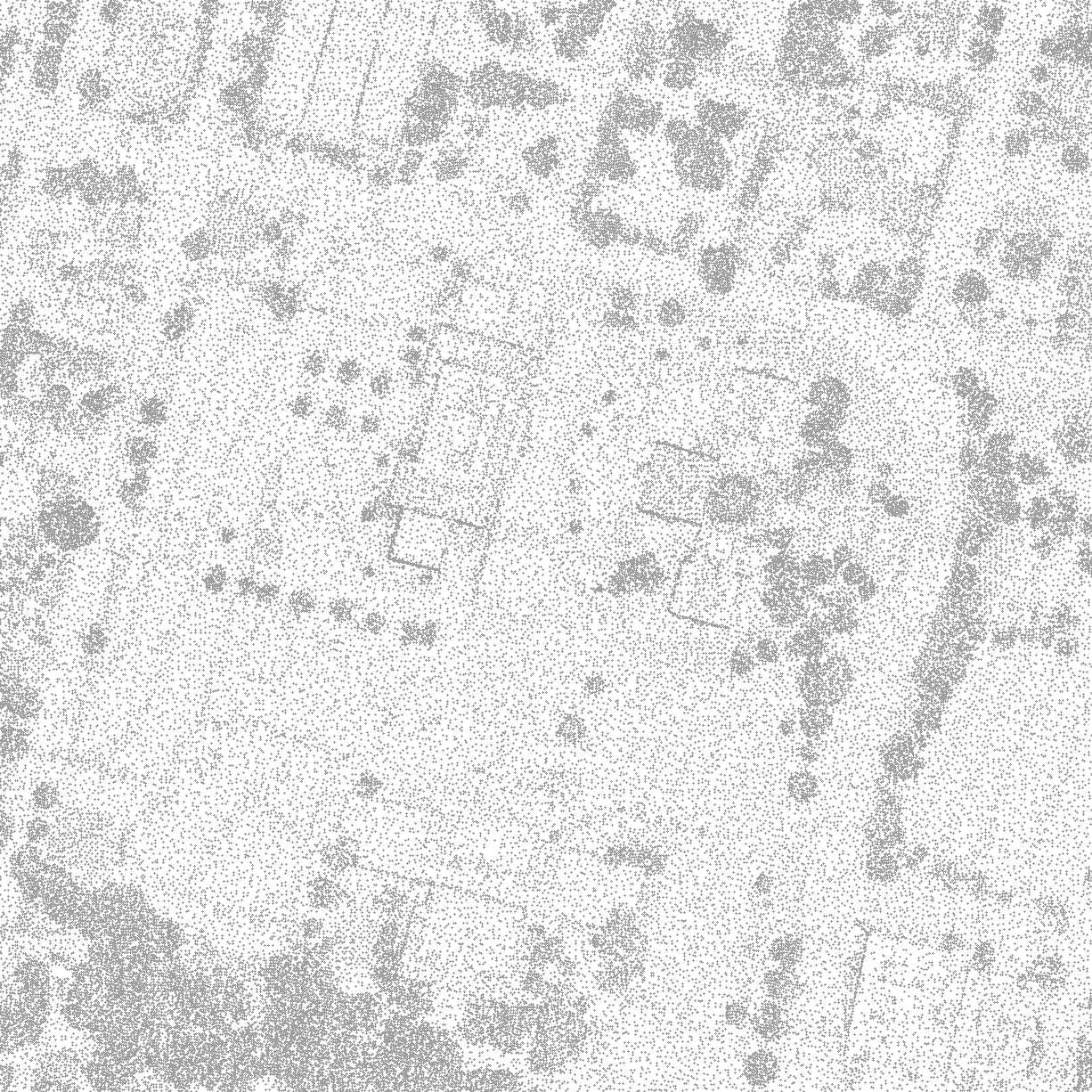

AFTER
../_images/AugustaUnclassifiedLidar.jpg ../_images/AugustaThinLidar.jpg

Example

The following is an example of LidarThin.:

gm.LidarThin(layers_list[1], gm.GM_LidarSpatialThinSetup_t(), 0)

For more context refer to the lidar sample scripts.
