SetLidarClassFilter

Updated
globalmapper.SetLidarClassFilter(GM_LidarClassFilter_t aClassFilter) → GM_Error_t32

Sets the active Lidar class filter that will be used automatically for display and other operations.

Parameters:

aClassFilter (GM_LidarClassFilter_t) – Class filter to make active (None to enable all types)

Returns:

Error Code

Return type:

GM_Error_t32

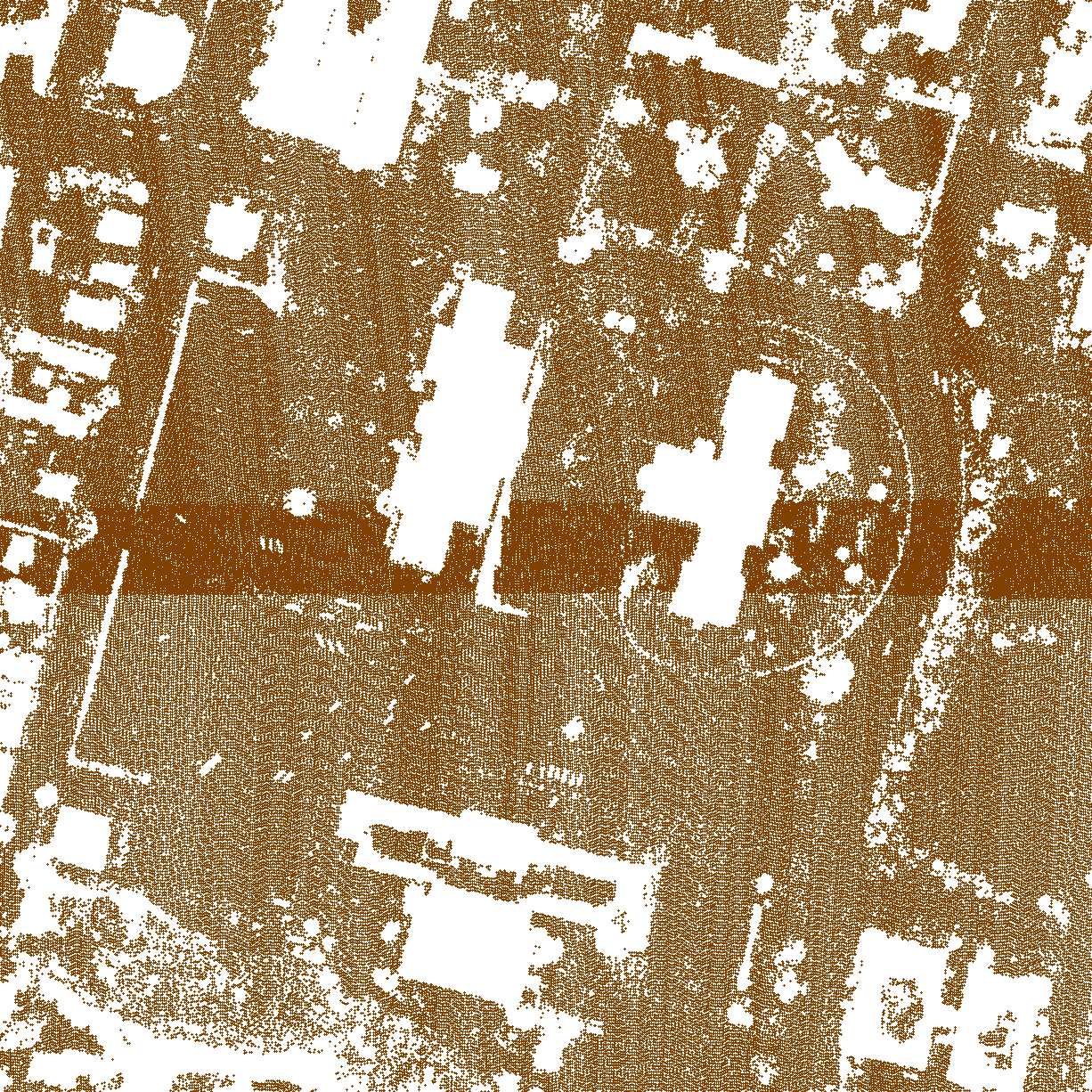

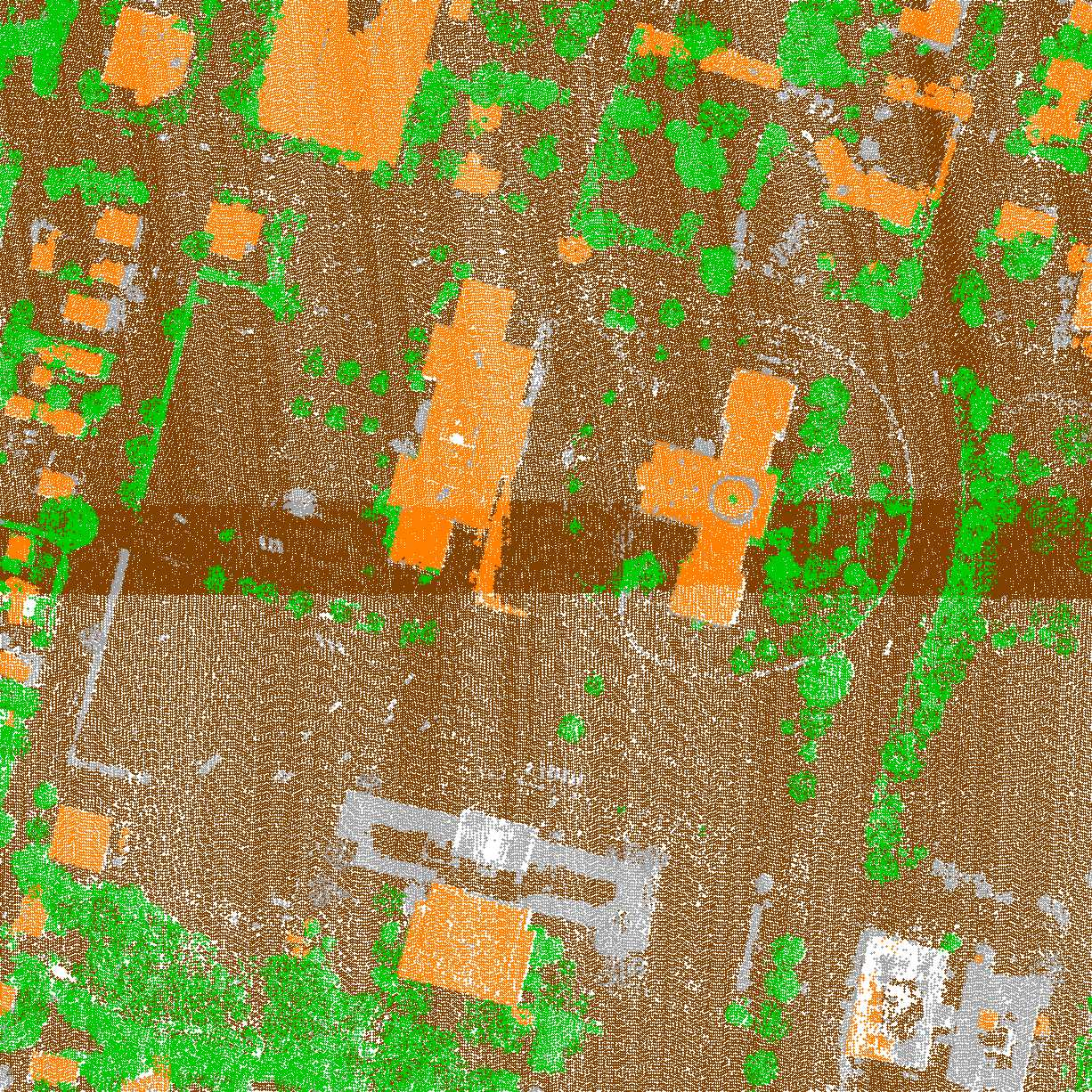

BEFORE

AFTER
../_images/AugustaClassifiedLidar.png ../_images/AugustaLidarFilter.png

Example

The following is an example of SetLidarClassFilter.:

# Save the current settings so they can be restored afterward
err_GetLidarClassFilter, prev_filter = gm.GetLidarClassFilter()
# Filter out all classes to start
err_LidarClassFilter_Init, class_filter = gm.LidarClassFilter_Init(False)
# Let ground points pass through
err_LidarClassFilter_SetClassEnabled, mask = gm.LidarClassFilter_SetClassEnabled(
    class_filter, gm.GM_LidarClass_Ground, True
)
# Set the filter
err_SetLidarClassFilter1 = gm.SetLidarClassFilter(class_filter)

For more context refer to the lidar sample scripts.
