| This function requires Global Mapper Advanced |
See also the Intersects and Intersection options in the Spatial Operations tool.
To find the intersection of two area features, select both features with the digitizer tool. Then select Find Intersection of Selected Area Features from Crop/ Combine/ Split Functions in the Digitizer menu or context menu.
This operation will
create a new area feature from the intersection of the two selected area

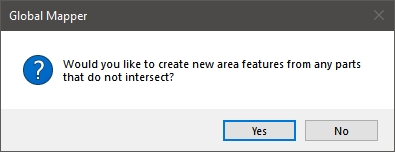

features. There is also an option to create new area features from what
is left outside of the intersection (in the prompt below).
If Yes is selected, then the original area features will be marked as deleted once the operation completes successfully. There will be new features for the area parts that did not intersect.
With the No option, new area features will be created representing the area of intersection, and the original features will remain as they were.
